AISI 440C Stainless Steel Balls

AISI 440C Stainless Steel Balls

Martensitic hardened stainless steel balls have remarkable hardness, wear resistance, surface finishing, dimensional tolerances so that it is frequently used in precision devices.

  • Material: AISI 420C
  • Diameter: 0.5mm-150.00mm;
  • Precision Grade:G20,G40,G80,G100,G200, G500, G1000,
  • Hardness: HRC57-65

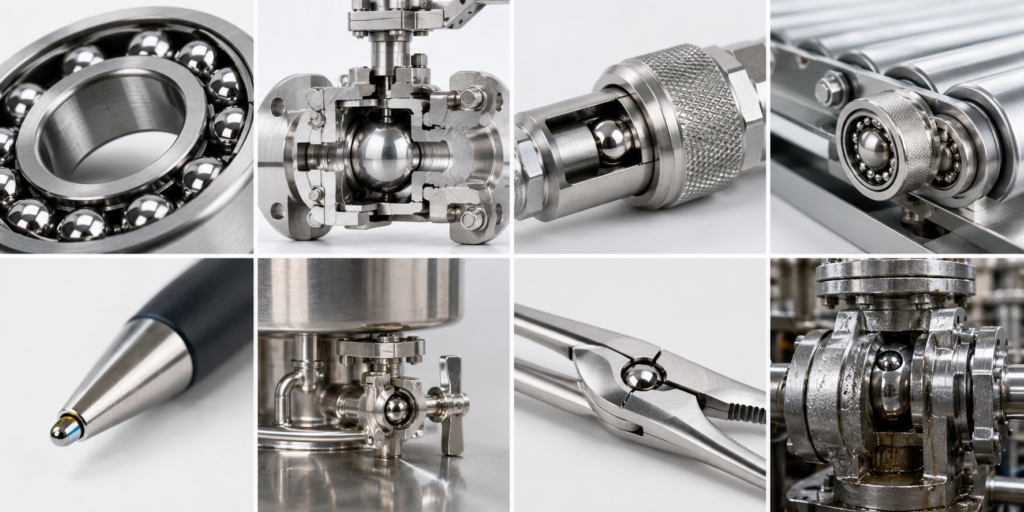

  • Application: Precision bearings, anti-friction bearings, conveyor belts and rollers, special valves, couplings, ballpoint pens, etc. They are used for food, medical equipment parts, knotting, oil refining, etc.
  • Corrosion resistance: 420C material can resist corrosion when exposed to fresh water, steam, oil, gasoline, and alcohol. However, it will be pitted in a seawater environment, and its corrosion resistance is poor in an acidic environment.
Physical Property
Corrosion Resistant Fair
Wear Resistant Excellent
Magnetism Yes
Technical Data
Hardness HRC 57 – 65
Density 7.70g/m3
Young’s Modulus 210GPa
Tensile Strength 1900-2000Mpa
Chemical Composition
Type %C %Si %Mn %P %S %Cr %Mo
440C 0.95-1.20 1.00 max 1.00 max 0.040 max 0.030 max 16.00-18.00 0.75 max

USACHNGERFRAITAUKRUSJAP

International Standard
440C 9Cr18Mo 1.4125 Z100CD17 X 105CrMo17 95X18 SUS440C
