Aluminium Oxide Balls
Standard 99.5% alumina oxide ceramic balls have a proven ability to operate well in wear, heat, and corrosive situations as well as maintain dimensional stability at high temperatures. Oxide balls with a polycrystalline structure are lightweight and have good mechanical properties as well as resistance to heat, corrosion, and abrasion. They work well as electric insulators and vehicle lubricants.
| Specification | |
|---|---|
| Commercial name | Aluminium oxide (Al2O3) |
| Diameter | 1.0mm-50.8mm |
| Precision Grade | ISO 3290 G5-G40 |
| Mechanical Data | |
|---|---|
| Hardness | 1250-1700 |
| Density | 3.9 g/cm³ |
| Young’s Modulus | 365GPa |
| Tensile Strength | 2100 -2600MPa |
| Service temperature | 1100/1600 °C |
Corrosion Resistance：It has the best corrosion resistance in water, salt solution and acid. In harsh environments. Except for hydrofluoric acid, hydrochloric acid, sulfuric acid, and hot alkaline solid solution, it exhibits corrosion resistance in hostile conditions.

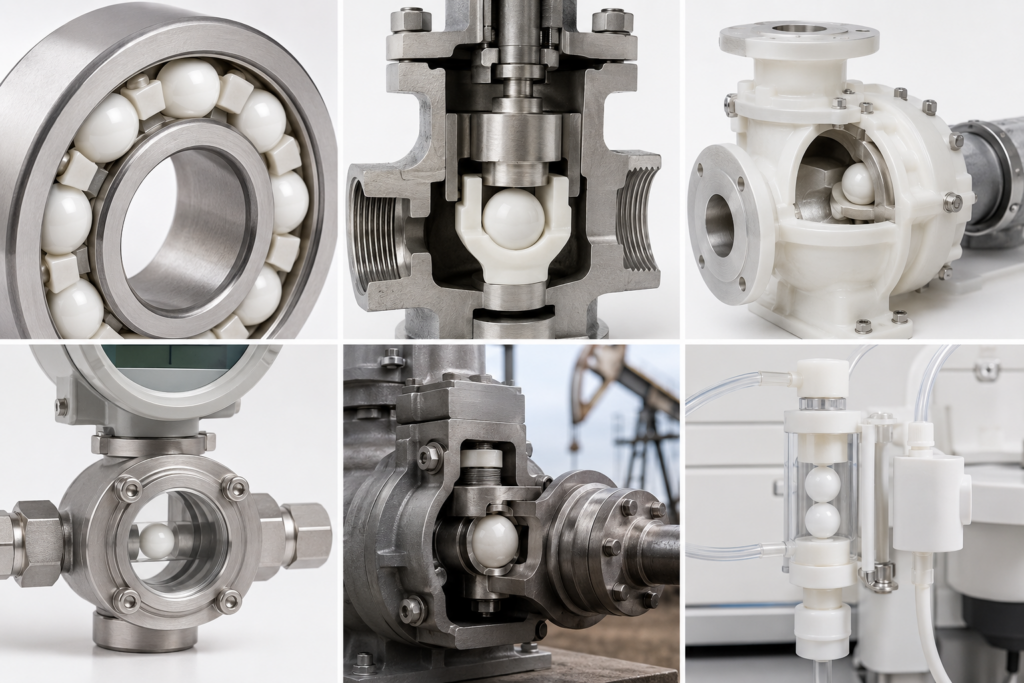

Application: Special bearings, control valves, corrosive-environment pumps and valves, pumps for petroleum equipment, flow meters, measuring tools, and medical equipment.
